New Vehicles » Harley-Davidson® » Sportster® Iron 883™
Model Quick Search

$7,999.00

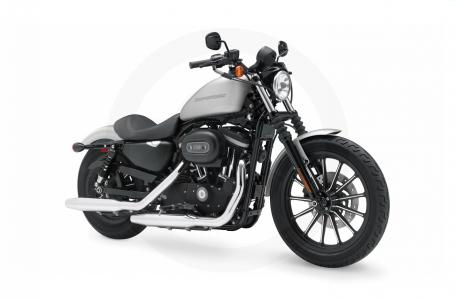

2010 Harley-Davidson® Sportster® Iron 883™
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Dimensions
    • Length: 85.8 in. (2179.32 mm)
    • Seat Height (Laden): 25.3 in. (642.62 mm)
    • Seat Height (Unladen): 26.3 in. (668.02 mm)
    • Ground Clearance: 3.9 in. (99.06 mm)
    • Rake Steering Head: 29.6 °
    • Trail: 4.6 in. (116.84 mm)
    • Wheelbase: 60 in. (1524 mm)
    • Fuel Capacity: 3.3 gal. (12.4905 L)
    • Oil Capacity: 2.8 qt. (2.6488 L)
    • Dry Weight: 548 lbs. (248.5728 kg)
    • Running Order Weight: 565 lbs. (256.284 kg)
    Powertrain
    • Engine: Air-cooled, Evolution®
    • Displacement: 53.9 cu. in. (883 cc)
    • Bore: 3 in. (76.2 mm)
    • Stroke: 3.812 (96.8248)
    • Engine Torque: J1349; 55 ft. lbs. (74.569 Nm) @ 3500 rpm
    • Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
    • Compression Ratio: 8.9:1
    • Primary Drive: Chain, 57/34 ratio
    • Fuel Economy: 45 mpg (45 l/100km):
    • Gear Ratio 1st: 10.782
    • Gear Ratio 2nd: 7.702
    • Gear Ratio 3rd: 5.728
    • Gear Ratio 4th: 4.748
    • Gear Ratio 5th: 4.071
    Wheels/Tires
    • Front Wheels: Black, 13-Spoke Cast Aluminum
    • Wheel Option: None
    • Rear Wheels: Black, 13-Spoke Cast Aluminum
    • Front Tire Size: 100/90-19 57H
    • Rear Tire Size: 150/80B16 71H
    Electrical
    • Instruments: Handlebar-mounted electronic speedometer with odometer, time-of-day clock odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
    • Indicator Lamps: High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
    Chassis
    • Brakes: Dual-piston front, single-piston rear
    • Lean Angle: 29 / 30 °
    • Exhaust System: Straight cut, shorty exhaust with dual mufflers
    Color Options
    • Color Options: Black Denim; Brilliant Silver Denim

    Specifications

    Engine
    Engine Type Evolution®
    Displacement 53.9 cu. in. (883 cc)
    Bore and Stroke 3 in. (76.2 mm) and 3.812 in. (96.8248)
    Cooling Air-cooled
    Compression Ratio 8.9:1
    Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
    Chassis
    Front Brakes Dual-piston
    Front Tire 100/90-19 57H
    Rear Brakes Single-Piston
    Rear Tire 150/80B16 71H
    Dimensions
    Dry Weight 548 lbs. (248.5728 kg)
    Fuel Capacity 3.3 gal. (12.4905 l)
    Wheelbase 60 in. (1524 mm)
    MPG 45 mpg (45 l/100km)
    Seat Height Laden: 25.3 in. (642.62 mm); Unladen: 26.3 in. (668.02 mm)
    Trail 4.6 in. (116.84 mm)
    Rake 29.6 deg
    Transmission
    Transmission 5 Speed
    Final Drive Chain, 57/34 ratio
    General
    Speedometer Speedometer
    Odometer Odometer
    Colors Black Denim; Brilliant Silver Denim

    Compare Models

    		 Print








    Year 2010
    Manufacturer Harley-Davidson®
    Model Sportster® Iron 883™
    Style Sport
    MSRP* $7,999.00
    Chassis
    Front Suspension
    Front Brakes Dual-piston
    Front Tire 100/90-19 57H
    Rear Suspension
    Rear Brakes Single-Piston
    Rear Tire 150/80B16 71H
    Dimensions
    Dry Weight 548 lbs. (248.5728 kg)
    Fuel Capacity 3.3 gal. (12.4905 l)
    Wheelbase 60 in. (1524 mm)
    MPG 45 mpg (45 l/100km)
    Seat Height Laden: 25.3 in. (642.62 mm); Unladen: 26.3 in. (668.02 mm)
    Trail 4.6 in. (116.84 mm)
    Rake 29.6 deg
    Engine
    Engine Type Evolution®
    Displacement 53.9 cu. in. (883 cc)
    Bore and Stroke 3 in. (76.2 mm) and 3.812 in. (96.8248)
    Cooling Air-cooled
    Compression Ratio 8.9:1
    Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
    Ignition
    General
    Speedometer Speedometer
    Tachometer
    Odometer Odometer
    Colors Black Denim; Brilliant Silver Denim
    Warranty
    Transmission
    Transmission 5 Speed
    Final Drive Chain, 57/34 ratio
